Zirconia Planetary Ball Mill Engineering Lab Equipment

Name: Zirconia Planetary Ball Mill Engineering Lab Equipment
Brand: JUSHIEN
Price: 1 USD

Quality Zirconia Planetary Ball Mill Engineering Lab Equipment wholesale

Brand Name : JUSHIEN

Model Number : PBM-104Q

Certification : CE Certification

Place of Origin : china

MOQ : 1

Payment Terms : 30% deposit + 70% T/T before shipping, T/T

Supply Ability : 30 sets per month

Delivery Time : 5-8 work days

Packaging Details : Carton, pallet, wooden case or according to customer's package requirements

Product Type : Powder

Application : Laboratory

Max Capacity : 1.32L

Speed Frequency : Adjusting

Materials Of Grinding Balls : stainless steel, agate, zirconia, alumina, nylon, PTFE

Max Production Capacity : 1.98L

Key Selling Points : Energy Saving

Hs Code : 8479909090

Specification : 0.2L-16L

Power Source : Electricity

Applicable Industries : Energy & Mining

Motor Power : 4.0kW

Max Feeding Capacity : 2/3 capacity of the grinding jar

Key Word : High Efficiency

Output Size : Minimum 0.1μm

Contact Now

Pruduct Describe

The PBM-104Q planetary ball mill is renowned in research settings for its 100ml volume capacity and quad workstations, which facilitate thorough sample preparation and homogenization. Its standout feature is a unique spatial rotation mechanism that allows for complete 360-degree jar rotation on the transmission plate, combining the advantages of both vertical and horizontal planetary mill designs for enhanced performance in a compact form.

The PBM-104Q exceeds the capabilities of its competitors in terms of speed and acceleration, with the ability to finely control rotational speed to ±1 rpm, showcasing an impressive level of speed regulation. Its capabilities make it particularly well-suited for applications that require speed, efficiency, and precision.

The PBM-104Q is a leading example of a laboratory mill that excels in meticulous grinding and rapid sample preparation, all while maintaining low noise operation and a robust control system. This innovative tool combines power with precision, making it an invaluable asset for any lab looking to enhance its sample processing capabilities.

Zirconia Planetary Ball Mill Engineering Lab Equipment

Performance Parameter

Apply	Brittle, soil, fiber, strong oxidation, corrosive powder pollution-free grinding
Application Area	Medicine, food, chemicals, synthetic materials, electronics, engineering, metallurgy, glass,
Sample Characteristic	Soft / hard material, brittle material
The principle of crushing	Friction force, the collision force
Dry Grinding	yes
Wet-milling	yes
Cryogrinding	customizable
Vacuum grinding	yes
Conventional crushing time	5-10min
Feed size	＜4mm
Maximum grinding amount of the batch	0.4L
Number of grinding platforms	4pcs
ratio of transmission	1:-2
Maximum rotation speed of the ball grinding tank	1000 r/min (4 cumulative total weight of station tank> 6 Kg set speed maximum 800rpm)
Speed adjustment range of the space rotating mechanism	(5-10)r/min
Finishing particle size:	0.1um
Ball grinding tank placement requirements	Symmetrically placed and of equal weight
Noise	50-65 db (depending on the ground ball and sample placed in the ball grinding tank)
Ball grinding tank material	Stainless steel / nylon / polyurethane / teFE / polypropylene / polyethylene / agate / alumina / zirconia, etc
Ball grinding tank size	100ml 50ml
Grinding ball material	Stainless steel / alumina / zirconia / cemented carbide / agate / polyurethane, etc
Grinding ball size	3mm 5mm 8mm 10mm 15mm
Operator schema	Push-button operation panel
Drive	Billless driver, brushless motor, brushless high-performance brake motor
Driving power	0.75kw
Driving voltage	220V
Motor frequency	50Hz
Mains connections	uniphase
Body size (width * depth * height) mm	679567660mm
Net weight	About 110kg (no tank and pendant weight)
Appendix	100ml pendant, 14 mesh screen, belt, disassembly tools, manual, warranty card, certificate.

Product Tags:

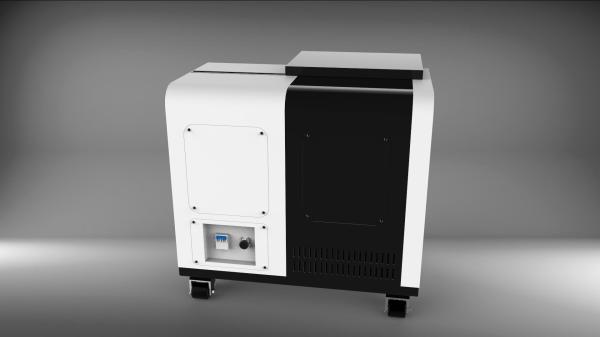

Zirconia Planetary Ball Mill Engineering Lab Equipment Images
